LF centrifugal pumps
Front Loading Seal LF Series is a Maintenance Dept Favorite
Ampco’s LF is designed with a unique front loading seal for maintenance ease and improved clean-ability.
While seal designs in competitor pumps are known to leak due to product build-up when processing tacky or sticky products, the specially designed Ampco LF seal eliminates this problem area by removing the traditional O-ring groove and dead zone. The innovative design of the Ampco LF seal offers a semi-exposed O-ring allowing product to flow freely through previously restricted areas eliminating product build-up.

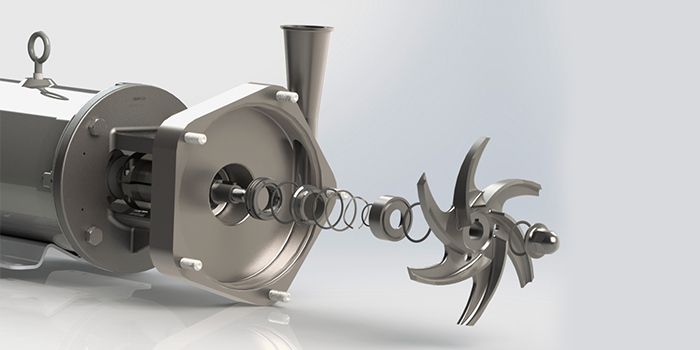

The LF seal design offers ease of assembly. Exclusive to the Ampco LF, the rotating seal stays retained in the driver during the assembly process too.
Balanced impellers, a self-aligning shaft design and tight manufacturing tolerances, minimize vibration and improve seal life, making the LF a preferred choice for difficult to handle products.
LF Series Centrifugal Pump Features
- · 316L Stainless Steel Heavy Wall Construction
- · Cast and Machined
- · 304 Stainless Steel Adapter
- · Balanced Impellers
- · 316L Stainless Steel Shaft
LF Series Performance Overview
Models: 13
Max Inlet Pressure: 150 PSI / 10 BAR
Max Flow Rate: 1800 GPM / 409 mᵌ/hr
Max Viscosity: 1,200 cP
Seal Specifications: 3 Seal Options
The LF Series is a highly efficient pump that gently handles product while providing a more sanitary seal design than competing pumps.
Industry leading delivery times, 304 stainless steel adaptors, seal design advantages, and a maintenance-friendly assembly process make Ampco’s LF Series a simple choice.
Cryogenic Low Temp Applications.
CBD hemp oil or Cannabidiol is fast becoming a mainstream ingredient for beverages, health products, gels, and other consumables products. The extraction process of these valuable oils can require pumping ethanol at temperatures as low as -70F (-56C). Ampco has designed a special seal for positive displacement and centrifugal pumps that are suitable for these extremely low temperatures.
LF Series Centrifugal Pump Advantages
· 304 Stainless Steel Adapter
· Cleaner Seal Design
· Rotating Seal Retained for Ease of Assembly
· Dimensionally and Hydraulically Interchangeable with Competing Pumps
· Convert to Double Seal Easily in the Field
· One Week Delivery
· Manufactured and Assembled in U.S.A.
