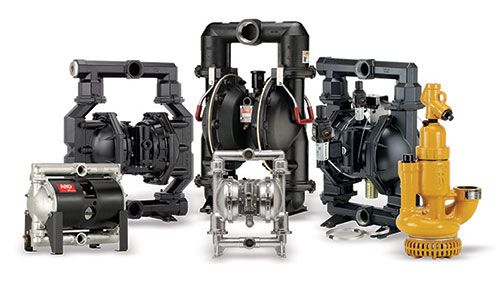

DescriptionUtilizing technology identical to other ARO pumps, these specialty models will provide the same high level of performance and satisfaction but in a design tailored for your specific application. Specialty pumps include drum packages, flap valve pumps, powder transfer pumps, high pressure pumps, sanitary transfer pumps, centrifugal dewatering pumps, and fuel transfer pumps.

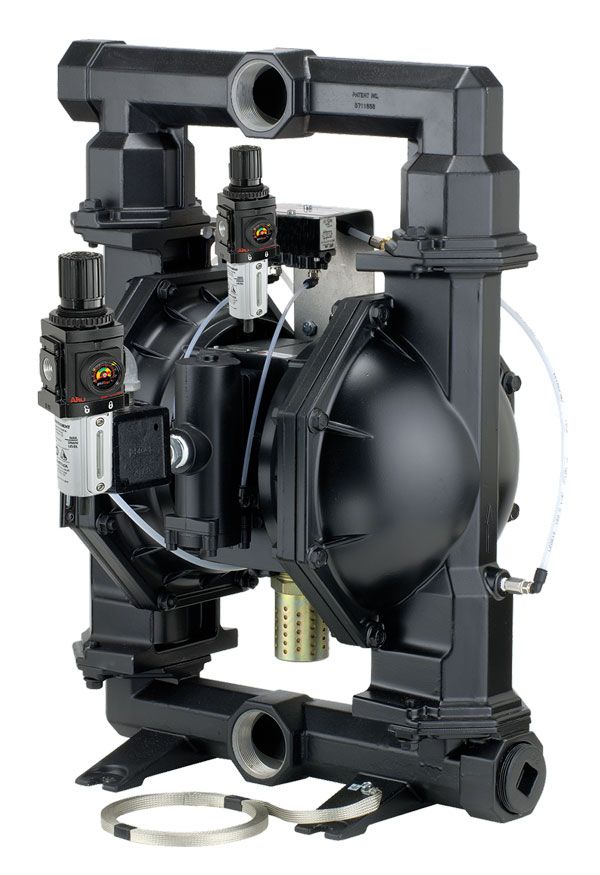

POWDER TRANSFER PUMPS

DescriptionTransfer and handle your dry process powders faster, cleaner and at a fraction of the cost associated with installed “systems.” Consistent trouble-free transfer of powders up to 45-lbs. per cubic foot (721 kgs. per cubic meter) dry-weight, such as carbon black, expanded mica, silicones, acrylic resins, 3D printing powders and pharmaceuticals Available in 1", 2" and 3" Ports



Features:

  • Replaces Manual Powder Processes
  • Reduce Airborne Contamination - With direct transfer from the powder container to your recipe
  • Unique Patented Air-Induction System - Avoids the possibility of powder pack-out
  • Economical and Simple - Unlike large, complex systems
  • Portable - Can be moved from site to site
  • Advanced Air-Induction Technology - 4-Way air efficiency valve, delay timer, pump major air valve, air induction valve, main air control valve and air motor muffler
  • NPT, BSP and Tri-Clamp material connections


Materials of wet end: Aluminium, Stainless steel
Elastomers: Santoprene or Medical grade Santoprene



Models

model Size connection Wet end max. flow (lts/min) max. pressure (bar) Solids up to (mm) Datasheet manual

PP10A

1“

Metallic consult 3,4 3,2

PP20A

2“

Metallic consult 3,4 6,4

PP30A

3“

Metallic consult 3,4 9,5



HIGH PRESSURE PUMP 2:1

DescriptionThe high pressure pump was developed for applications requiring fluid pressures in excess of the 6,9 bar developed by traditional pumps. Compared to a standard diaphragm pump, the 2:1 ratio high-pressure pump can produce up to 13,8 bar, at about half the flow rate. The 2:1 ratio is accomplished by using the effective surface area of both diaphragms to double the output pressure.



Features:

  • Utilizing Power - Can produce up to 13,8 bar, at about half the flow rate of a standard diaphragm pump by utilizing the effective surface areas of both diaphragms to double output pressure.
  • Structural Integrity - Bolted Construction eliminates problems associated with leaking band-clamps while also reducing maintenance costs
  • Simul-Shift™ and Quick Dump™ valve technology for stall free / ice free operation
  • Intelligent Design - Modular major valve for ease of repair
  • Built to Last - Convoluted diaphragms for long life


Size - Available in 3", 2" and 1.5" ports

Material of wet end: Stainless steel
Elastomers: santoprene, hytrel, PTFE



Models

model Size connection Wet end max. flow (lts/min) max. pressure (bar) Solids up to (mm) Datasheet manual

PH15F

1-1/2“

Kovové 238,5 13,8 6,4

PH20F

2“

Kovové 348,2 13,8 6,4

PH30F

3“

Kovové 605,6 13,8 9,5

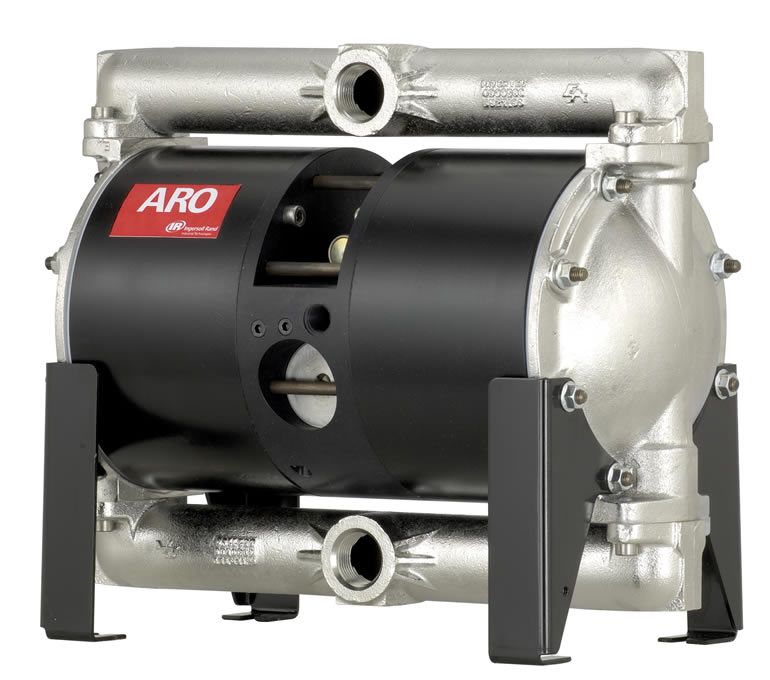

HIGH PRESSURE PUMP 3:1

DescriptionCan produce up to 21 bar, at about half the flow rate of a standard diaphragm pump by utilizing two power pistons that drive the fluid handling diaphragms



  • Generates nearly 21 bar on standard 7 bar shop air
  • Stall-Free
  • Exceptional material compatibility
  • Easy to maintain
  • Ideal transfer of paint recirculation and high solid coatings, inks, adhesives, filled material, drilling grout, caulking, solvent reclamation and resins
  • Size - Available in 1" port

Material of wet end: Stainless steel
Elastomers: PTFE



Models

model Size connection Wet end max. flow (lts/min) max. pressure (bar) Solids up to (mm) Datasheet manual

PH10A

1“

Metallic 98,4 21 3,2

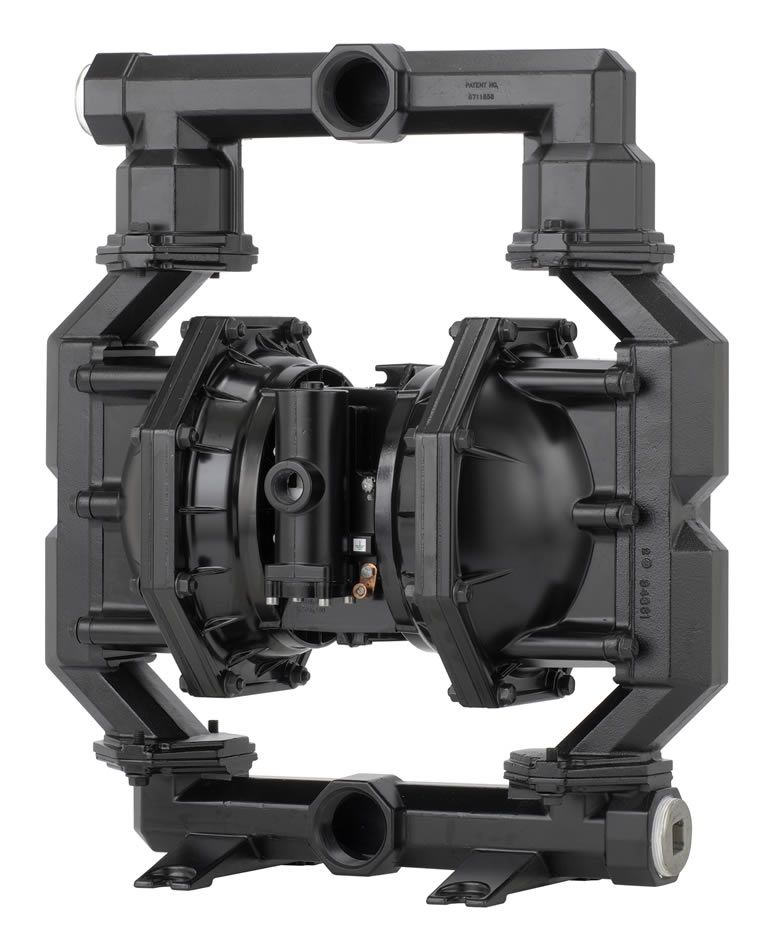

FLAP VALVE

DescriptionAble to handle 2" semi-solids and 3/4' solid materials. Available in three different construction materials including Aluminum, Cast Iron or Stainless Steel with the option of Plated Steel or Stainless Steel hardware. Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal. Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation.



  • Size - Available in 2" port
  • Material of wet end: Aluminium, Cast Iron, Stainless steel
  • Elastomers: Santoprene, Nitrile, PTFE, Viton



Models

model Size connection Wet end max. flow (l/min) max. pressure (bar) Solids up to (mm) Datasheet manual

PF20

2“

Metallic 651 6,9 50



CENTRIFUGAL DEWATERING PUMP

DescriptionSimple design, few moving parts Handles a wide variety of debris-laden applications. Adjustable impeller and impeller cover help maintain peak performance. Ultra-rugged body construction insures durability. Lightweight and extremely portable. Material of wet end: cast iron



Models

model Size connection Wet end max. flow (l/min) max. pressure (bar) Solids up to (mm) Datasheet manual

P237AX-EU

2-1/2“

Kovové 757 6,2 6,4

P35A1-EU

2“

Kovové 870 6,2 6,4
