ARO EXPERT SERIES - PREMIUM TECHOLOGY


Air operated Diaphragm (AOD) pumps from US company Ingersoll-Rand.

Main advantages are high quality, low maintanance cost, easy for repair, wide material possibilities, patented air valve. All together offering wide portfolio of applications as acids, abrassive, organic, viscous, explosive…. Most of pumps are certificated for ATEX (CE Ex11 2GD X) and with FDA for food industry.



Technical specification:

  • Maximum flowrate is 1079 litres/minute, pressure 8,6 bar ( standart models).
  • Self suction and dry run possibility ( without fluid ) without failure.
  • Maximum pumping viscosity is around 10 000 mPa.s and maximum solid particles 9,5 mm.
  • Patented construction of air motor are unique and ARO pumps are not stalling and not freezing. Convoluted diaphragms are best for long time operation without failure. Efficiency is higher compare to other AOD pumps because is used positive seals with ceramic D valve, So no energy wasted during pump idle.



Wide variety material combinations:

  • Wet body: aluminium, stainless steel, cast iron, polypropylene (PP), PVDF, Acetal
  • Diaphragm and valves: Santoprene, Nitrile, Hytrel, Neoprene, Viton, PTFE, PU



Model Size connection Wet end

Max. flow (llts/min)

Max. pressure (bar)

Solids up to (mm)

Datasheet
PD01

¼“

Plastic 20 8,6 1,6 PD01
PD03

3/8“

Plastic 40,1 6,9 1,6 PD03
PD05

½“

Plastic 54,5 6,9 2,4 PD05
PD07

¾“

Plastic 56 6,9 2,4 PD07
PD10

1“

Plastic 200 8,3 3,2 PD10
PD15

1 ½“

Plastic 465 8,3 6,4 PD15
PD20

2“

Plastic 696 8,3 6,4 PD20
PD30

3“

Plastic 1079 8,3 9,5 PD30
PD05

½“

Metallic 45,4

6,9

2,4 PD05
PD07 ¾“ Metallic 51,5 6,9 2,4 PD07

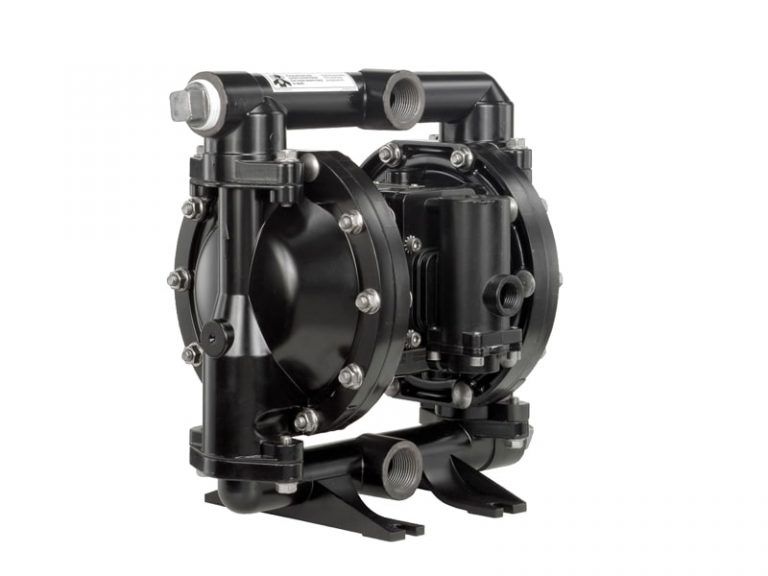

PD10 1“ Metallic 197 8,3 3,3 PD10
PD15 1 ½“ Metallic 465 8,3 6,4 PD15
PD20 2“ Metallic 651 8,3 6,4 PD20
PD30 3“ Metallic 1041 8,3 9,5 PD30

COMMON MODELS:

  • PD03P-BDS-DTT
  • PD03P-BRS-PTT
  • PD03P-BRS-PAA
  • PD05P-BRS-PAA-B
  • PD10P-FPS-PAA
  • PD10P-YPS-PAA
  • PD10A-BSS-SAA
  • PD15A-BAP-AAA
  • PD20A-BAP-AAA-B
  • PD20P-FPS-PAA
  • PD30A-BAP-AAA-C
